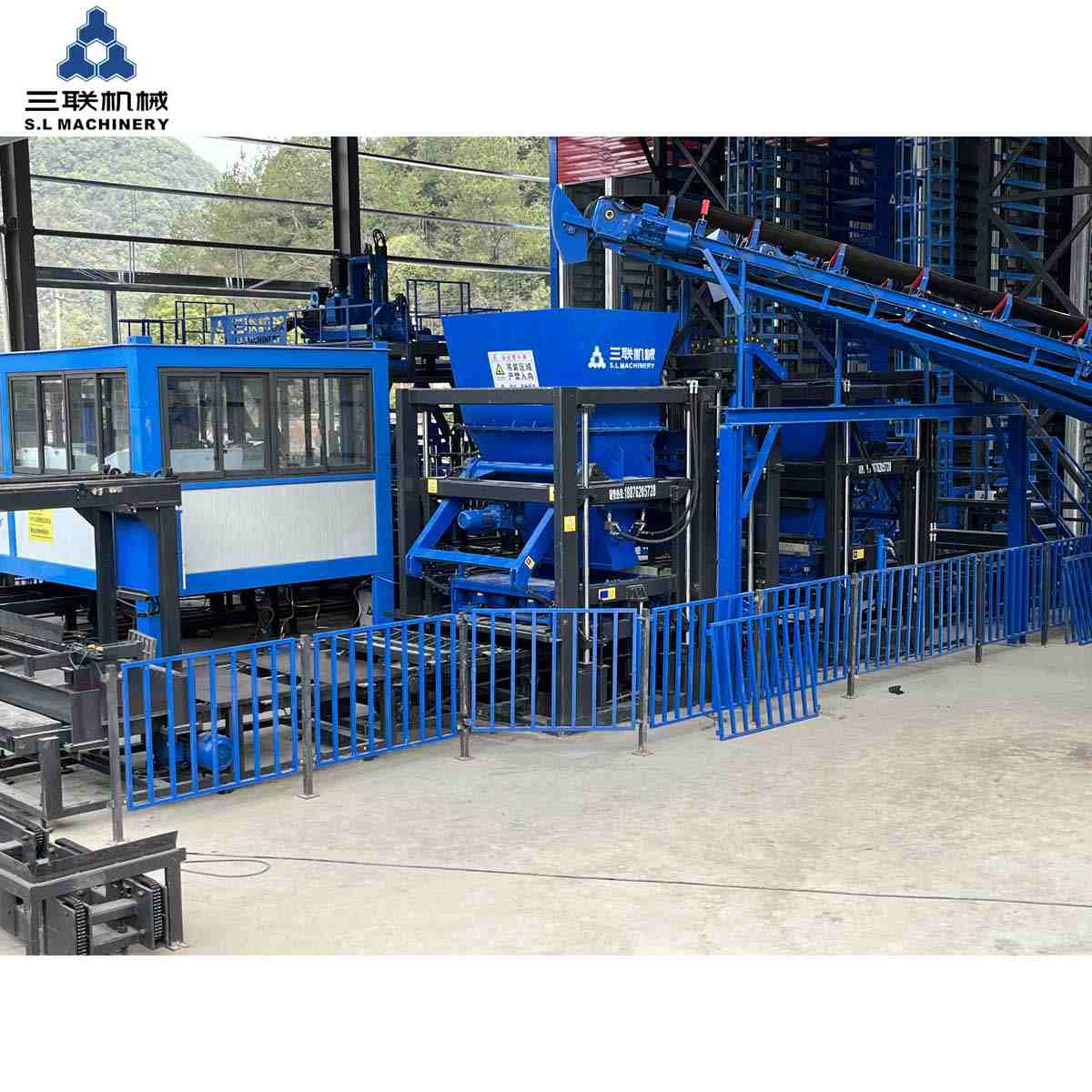

SLST Series Automatic Servo Brick Machine
Fully Automatic Servo Brick Machine
The fully automatic servo wall and floor tile production line is based on servo vibration and servo hydraulic technology. It can be equipped with functions such as lateral movement, core pulling, EPS board conveying, and quick mold change, maximizing customer production needs. In terms of raw materials, it can utilize construction waste, slag, stone powder, coal gangue, tailings, etc., achieving efficient resource recycling. It can also support various standard concrete products, such as curbstones, hollow bricks, PC ecological imitation stone bricks, solid bricks, and water slope protection bricks, meeting diverse market demands. Currently, the company has excellent demonstration projects in municipal engineering, water conservancy projects, and other fields. It can provide customers with a platform for visits, fully promoting customers’ green recycling development efforts and providing diversified, professional integrated solutions for solid waste treatment.
What are the advantages of Fully Automatic Servo Brick Machine
1.High-efficiency production: Through the full servo drive system, the machine can achieve precise control and rapid response, greatly improving production speed and efficiency, and has a higher output than traditional brick machines.
2.Precise control: The servo motor provides precise position control and torque output to ensure dimensional accuracy and quality consistency during the molding process and reduce scrap rate.
3.Energy saving and consumption reduction: Although the initial investment may be high, the high efficiency and precise control capabilities of the servo system can effectively reduce energy consumption and save energy costs in long-term operation.
4.Easy operation: Equipped with a touch screen human-machine interface and an intelligent control system, the operation is simple and intuitive, reducing the complexity and error rate of manual operation and reducing the requirements for operator skills.
5.Simple maintenance: The servo system usually has a good fault diagnosis function, which can quickly locate problems, facilitate maintenance and repair, and reduce downtime.
6.Good environmental performance: The fully automated production process reduces the waste of raw materials. At the same time, high efficiency and low energy consumption also meet the requirements of environmentally friendly production.
Technical Parameters
| Model | SLST2000 | SLST1500 | SLST1400 | SLST1300 | SLST1000 |
| Pallet Size(mm) | 1400×1350 | 1400×1200 | 1400×950 | 1400×750 | 1220×900 |
| Max.Molding Area(mm) | 1310×1300 | 1310×1150 | 1310×900 | 1310×700 | 1100×860 |
| Min.Product Height(mm) | 45 | 45 | 45 | 45 | 45 |
| Max.Product Height(mm) | 500 | 500 | 500 | 500 | 350 |
| Cycle Time(s) | Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
| lf the required pallet size or product heights are not listed here, we are happy to make special plans for you. | |||||
Production Table
| Model | Brick Size | Production(Per mould) | Production(8h one shift) |
| SLST2000 | Hollow Brick 390x190x190mm | 18 | ≈34,500Pcs 480 m³ |
| Solid Brick 240x115x53mm | 105 | ≈252,000Pcs 368m³ | |
| Paver 200x100x60mm | 66 | ≈95,000Pcs 1900m² | |
| SLST1500 | Hollow Brick 390x190x190mm | 15 | ≈28,000Pcs 394 m³ |
| Solid Brick 240x115x53mm | 94 | ≈225,600Pcs 330 m³ | |
| Paver 200x100x60/80mm | 60 | ≈86,000Pcs 1700m² | |
| SLST1400 | Hollow Brick 390x190x190mm | 12 | ≈22,400Pcs 315m³ |
| Solid Brick 240x115x53mm | 73 | ≈175,200Pcs 256 m³ | |
| Paver 200x100x60/80mm | 48 | ≈68,800Pcs 1350m² | |
| SLST1300 | Hollow Brick 390x190x190mm | 9 | ≈17,200Pcs 240 m³ |
| Solid Brick 240x115x53mm | 55 | ≈132,000Pcs 193 m³ | |
| Paver 200x100x60mm | 36 | ≈51,800Pcs 1030 m² | |
| SLST1000 | Hollow Brick 390x190x190mm | 10 | ≈18,600Pcs 262m³ |
| Solid Brick 240x115x53mm | 62 | ≈148,000Pcs 216m³ | |
| Paver 200x100x60/80mm | 40 | ≈57,300Pcs 1130m² | |
| Difference between different raw material and ratio and production mode If a cuber is required, the capacity may be affected |
|||
System Function
1、Servo Vibration System
2、Servo Control System
3、Efficient Servo Hydraulic System
4、Quick Mould Changing
5、Mould Box Damping Airbag
6、Mould Head Shifting Device
Product Image Detail
If you are interested in our products, please contact us !
